Private and completely self contained this building provides an exceptionally large living area with a built in kitchen and a comfortable well equipped en suite bedroom.



THE LIVING ROOM



Engineered timber laminate cushioned floor finish with low voltage energy saving underfloor heating. Low energy LED inset ceiling downlights, miniature exterior bulkhead mounted pathfinding lighting. TV, Phone, Internet, WiFi connection points. Double power point outlets. USB charging points. Remote controlled mechanical ventilation unit with heat recovery. Smoke detector



Floor to ceiling double glazed tilt opening windows, high level ‘letterbox’ tilt opening aluminium double glazed window. Linea Rossa, Italian design floor to ceiling flush mounted aluminium sliding glass entrance door with smooth glide tracks and multiple locking points. Impact resistant double glazed low E solar control glass. Recessed floor tracks enabling wheelchair access with integrated rainwater drain. Easy ‘turn and lock’ extended door handle. Full panel sliding insect screen door.



Double lined, fire resistant plasterboard wall and ceiling with flexible plaster finish. Marine grade (low VOC/anti bacterial) acrylic ceiling and wall paint finishes.

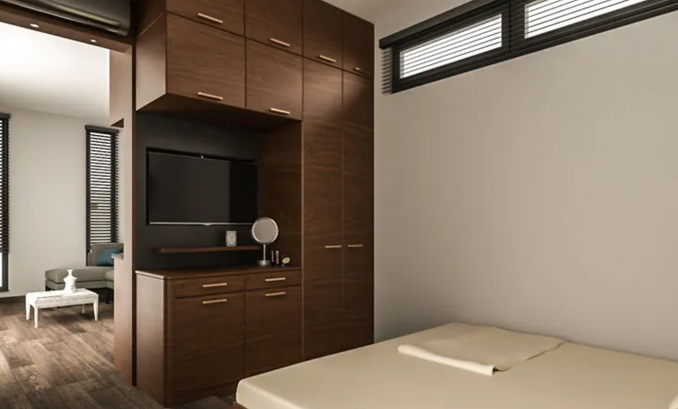

THE BEDROOM



Engineered timber laminate cushioned floor finish with low voltage energy saving underfloor heating. Low energy LED inset ceiling downlights, miniature bulkhead mounted (3) pathfinding lighting, dressing table above counter lighting. TV, Phone, Internet, WiFi connection points. Double power point outlets. USB charging points. Smoke detector



Floor to ceiling Italian design aluminium double glazed tilt opening window, high level ‘letterbox’ tilt opening double glazed window. Double lined, fire resistant plasterboard wall and ceiling with flexible plaster finish. Marine grade (low VOC/anti bacterial) acrylic ceiling and wall paint finishes.



Integrated hanging wardrobe and cupboard storage wall in wood grain laminated (optional gloss lacquer) composite with brushed aluminium handles, soft close doors and drawers. Dressing table counter in wood grain laminate (optional granite) with rotating mirror/TV monitor mounted for viewing in bedroom or living room.



THE KITCHEN



Custom built kitchen base and wall cupboards in wood grain laminated (optional gloss lacquer) composite with brushed aluminium handles, soft close doors and drawers. Under counter concealed fridge. Kitchen work surface counter in laminate (optional granite) with inset two ring ceramic hob unit, stainless steel sink with Grohe polished chrome mixer tap. On demand hot water. Wall mounted storage wall with integrated under unit lighting and slide out hob extractor unit. Rotating mirror/TV monitor mounted for viewing in bedroom or living room.



THE BATHROOM



Wet room style shower with floor drain and stainless steel grab rails. Ceiling mounted, chrome finished adjustable, shower rose and hand held (wall mounted) shower head with hose. Controlled by polished chrome Grohe shower mixer tap. Concealed cistern wall mounted toilet with stainless steel foldable, grab support rails. Grohe polished chrome, water saving double flush. Inset glass shelving storage column. White ceramic deep bowl washbasin with polished chrome Grohe mixer tap designed for reduced mobility users. Polished chrome waste and accessories.



Wall mounted stainless steel grab and support rails. Height adjustable, tilting wall mirror. White ceramic wall tiles, non slip white ceramic floor tiles, marine grade (low VOC/anti bacterial) acrylic ceiling and wall paint finishes. Low energy LED inset ceiling spot lights, wall mounted inset shaver socket, Dimplex low energy wall mounted heater and towel rail. Factory fitted plumbing integrated into the structure of the building is pressure tested before delivery.



On demand hot water. Mechanical ventilation with exterior, adjustable wall mounted chrome vent outlet Floor to ceiling window with opaque glass. Extra wide composite, double hinged bathroom door for wheelchair access with brushed stainless steel door furniture and safety locking device. Options – shower seat, hoist, IR controlled lighting, thermostatically controlled shower taps, IR controlled basin taps

​

THE BUILDING STRUCTURE



A robust galvanised steel frame structure protected by a galvanized coating generally accepted within the steel industry to provide a time to first maintenance of a minimum 100 years. Six point structural hanging system allows building to be lifted (without slings). Innovative omega section base rails allow positioning on a variety of ground surfaces without foundations.

Building dimensions are optimised for cost effective transport by truck or container and ‘permitted development’ compliance for UK planning.



THE ROOF



A double insulated Firestone EDPM ‘warm’ roof with standing seam outer coating, integrated rainwater gutters and concealed downpipes. ‘U’ Value 0.13W/m2K.



THE WALLS



A complex, patented wall structure with two layers of thermal and phonic insulation, a breathable vapour control membrane and a ventilated mechanical external cladding of Eternit through colour solid core composite. ‘U’ Value 0.19W/m2K. Factory installed electrical installation in flexible conduit with halogen free cable including a multi fused consumer unit with RCD (specification according to local regulations)



THE FLOOR



A multi-layer cassette type floor structure with damp proof membrane, insulating mat and thermal and phonic insulation layers integrating plumbing and drainage equipment and water/waste termination connections. ‘U’ Value 0.16W/m2K.
